Metallb layer 2 access denied

General Discussions
1

Hello everyone

i have one master and two nodes , my cluster is bare metal kubernetes , for having a loadbalancer i have choosed metallb . for first step i decided to use layer2 . every thing look great as my service got its external ip from the ip pool. i have made the ip pool in the same network of the nodes . i configed my kubernetes just like all manual which are in the internet ( choosing nginx image for creating deployment and choosing Loadbalancer for the service type and also port 80 as the container port).

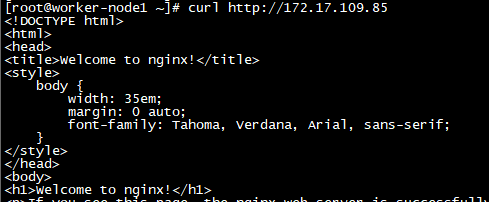

Now when i curl http://ExternalIP from my master or other node , nginx responses.

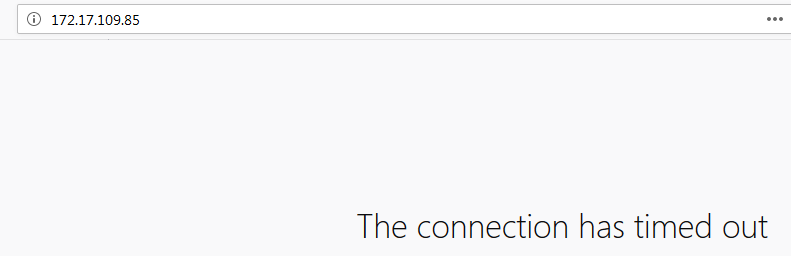

But the problem is that , there is no access to the external ip from outside of my cluser . i also have no access to the external ip from the same network ips.

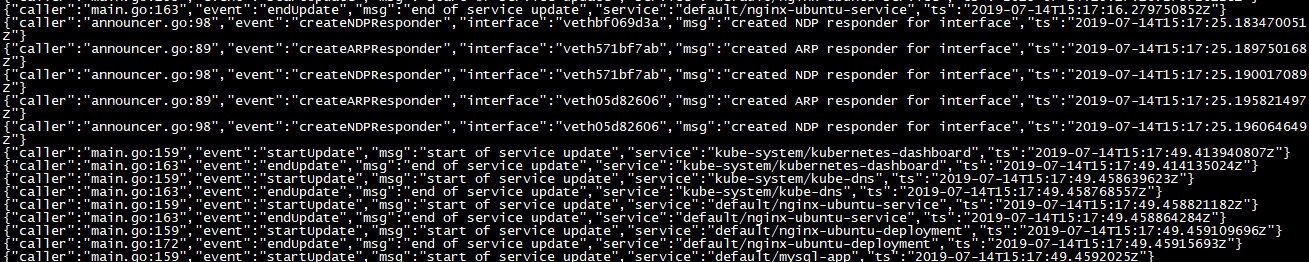

when i check the logs there is some “ARP responder” logs , but there is no access to http://Externalip:80

the firewall service is stoped in my master and all nodes .

i have also enable proxy_arp in my master and nodes .

So …please tell me …“How can i access my metallb layer2 loadbalancer with external ip from outside of my cluser ?”

image.png787Ă—113 5.97 KB

image.png869Ă—73 4.1 KB

image.png1309Ă—262 19.7 KB

image.png791Ă—256 5.52 KB


2

Is the externalIP pool in the same IP range as the hosts? The external IP pool MUST be routable on the host’s network for it to function.

3

hi
thanks for your response , yes , as above photos show , my external ip , has the same range ip as the master and nodes .

4

you were right . one of my nodes was in different range and vlan , when i changed node ip , my problem has been solved , thanks
