Multi-region HA cluster with microk8s

Hi I am new to kubernetes, and have started the learning with microk8s

I have completed a simple HA-cluster with 3 vm in my home network, and I am trying to move on creating a multi-region cluster using microk8s and I am now facing some technical issues accomplishing it.

My definition of multi-region refers to joining 3 physical nodes over internet using dynamic dns hostname, in my example below donkey.example.com, monkey.example.com, turkey.example.com.

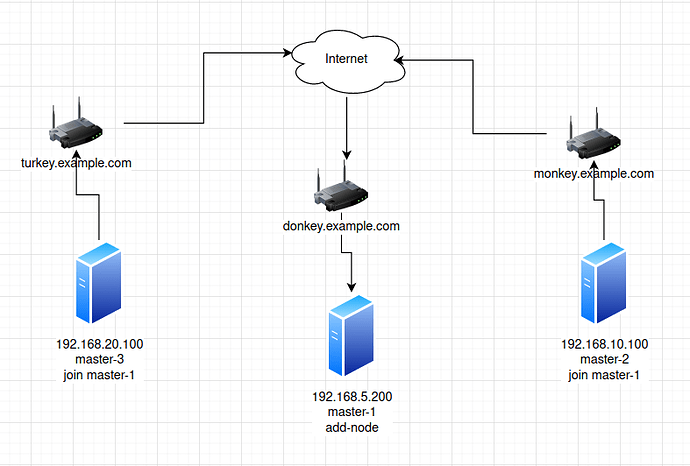

My ideal cluster should look like what is illustrated below

Assuming the example in my ideal cluster i would need to configure the following

Port Forwarding on donkey.example.com to physical node holding a NAT address 192.168.5.200
25000 for cluster-agent
16443 for api
19001 for dqlite

In my master-2, i should probably do the following

microk8s join donkey.example.com:25000/baea11773c0aaa94144300883bbdeb02/7a8e9d2dc1b7

but I am unable to join to master-1

My question

  • Is multi-region HA clustering possible with microk8s?
  • if yes, what have I done wrong, or assumed wrongly?
  • if no, why it is not possible?

Hi

Any feedback?
Am I totally off from what the design of microk8s is supposed to do?

Hi @kytay

The authors of [1] take a slightly different approach. They setup a network over the different regions. You might find i interesting.

[1] How to Deploy a Cross-Cloud Kubernetes Cluster with Built In Disaster Recovery - DEV Community
